Ju 287

[TG_survivor707 297]

Special thanks to TT33a and NightFalcon for additionnal non wikipedia information.

See second post for more probable variant and specs.



Junkers Ju 287 V1



[url=http://s215.photobucket.com/user/weatherman003/media/cm_avioesbombarde_09_zps3abe59bc.jpg.html][/URL]



Wikipedia description until further notice.



The Junkers Ju 287 was a Nazi Germany aerodynamic testbed built to develop the technology required for a multi-engine jet bomber. It was powered by four Junkers Jumo 004 engines, featured a revolutionary forward-swept wing, and apart from said wing was assembled largely from components scavenged from other aircraft.



The first prototype was intended to evaluate the concept, and was cobbled together from the fuselage of an He 177 A-5, the tail of a Ju 388, main undercarriage from a Ju 352, and nosewheels taken from crashed B-24 Liberators.



Two of the Jumo 004 engines were hung under the wings, with the other two mounted in nacelles added to the sides of the forward fuselage.Flight tests began on 16 August 1944 (pilot: Siegfried Holzbaur^[1]), with the aircraft displaying extremely good handling characteristics, as well as revealing some of the problems of the forward-swept wing under some flight conditions. The most notable of these drawbacks was 'wing warping', or excessive in-flight flexing of the main-spar and wing assembly. Tests suggested that the warping problem would be eliminated by concentrating greater engine mass under the wings. This technical improvement would be incorporated in the subsequent prototypes. The 287 was intended to be powered by four Heinkel-Hirth HeS 011 engines, but because of the development problems experienced with that motor, the BMW 003 was selected in its place. The second and third prototypes, V2 and V3, were to have employed six of these engines, in a triple cluster under each wing. Both were to feature the all-new fuselage and tail design intended for the production bomber, the Ju 287A-1. V3 was to have served as the pre-production template, carrying defensive armament, a pressurised cockpit and full operational equipment.




Wikipedia characteristics:

General characteristics

• Crew: 2
• Length: 18.30 m (60 ft 0 in)
• Wingspan: 20.11 m (66 ft 0 in)
• Height: 4.70 m (15 ft 5 in)
• Wing area: 61 m² (660 sq ft)
• Empty weight: 12,500 kg (27,558 lb)
• Gross weight: 20,000 kg (44,092 lb)
• Powerplant: 4 × Junkers Jumo 004B-1 turbojet engines, 8.825 kN (1,984 lbf) thrust each

Performance

• Maximum speed: 558 km/h; 302 kn (347 mph) at 6,000 m (19,685 ft)
• Cruise speed: 512 km/h; 276 kn (318 mph) at 7,000 m (22,966 ft)
• Range: 1,570 km (976 mi; 848 nmi)
• Service ceiling: 9,400 m (30,840 ft)
• Rate of climb: 9.67 m/s (1,904 ft/min)



Why are we getting this?

because it really feels counterproductive on all account with the notable exception of bombload..



Anyone reliable info then this out there? Gaijin, share the specs?



UNLESS we ge the production versions.. V3/ A1

Edited July 9, 2014 by TG_survivor707

[TG_survivor707 297]

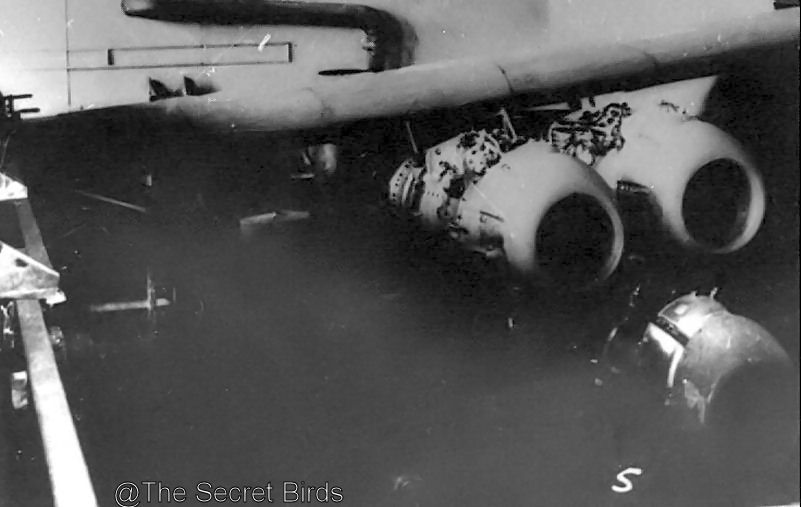

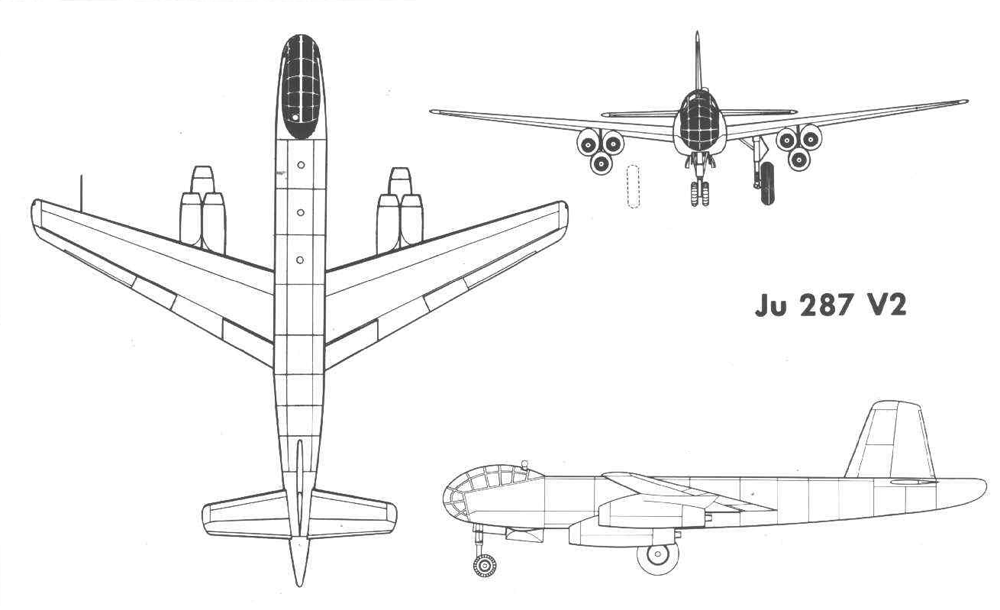

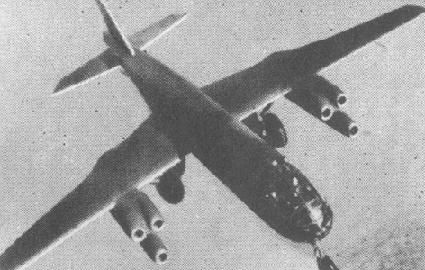

Ju287 V2



[url=http://s215.photobucket.com/user/weatherman003/media/ju287-1_zpsa8047c56.gif.html][/URL]

[spoiler][url=http://s215.photobucket.com/user/weatherman003/media/Ju287_V2_4_zps6bb4d8be.jpg.html][/URL]

[url=http://s215.photobucket.com/user/weatherman003/media/ju-287V2_zps530cb8c9.jpg.html][/URL][/spoiler]

General characteristics

• Crew: 2
• Length: ?
• Wingspan: 20.11 m (66 ft 0 in)
• Height: ?
• Wing area: 61 m² (660 sq ft)
• Empty weight: ?
• Gross weight: ?
• Powerplant: Ju 287 V2 6 x BMW 003A1 or 4x Hes 011's

Performance

• Maximum speed: ?
• Cruise speed: ?
• Range: ?
• Service ceiling: ?
• Rate of climb: ?

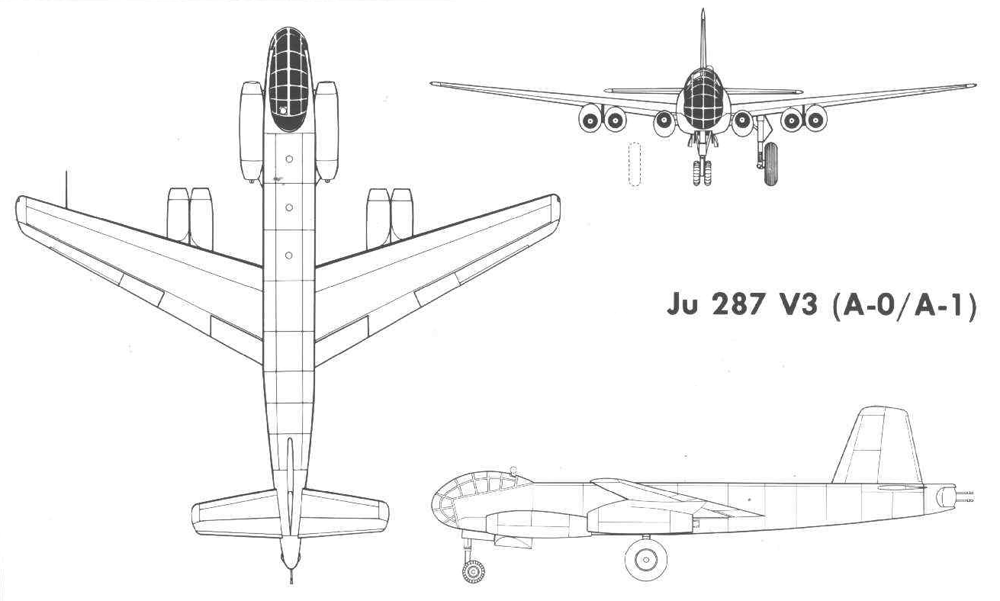

Ju287 V3/A1 Production version



[url=http://s215.photobucket.com/user/weatherman003/media/ju287-2_zps6848991f.gif.html][/URL]

General characteristics*

• Crew: 3
• Length: 18.6 m  (61 ft 01/4 in)
• Wingspan: 20.11 m (66 ft 0 in)
• Height: ?
• Wing area: 61 m² (657 sq ft)
• Empty weight: 26,278 lb
• maximum loaded weight: 47,398 lb
• Powerplant: Ju 287 V2 6 x BMW 003A1 or 4x Hes 011's

Performance *

• Maximum speed: 819.2 kph (509mph) at sea level and 864.2 kph (537 mph) at 16,400 ft
• Cruise speed: (80%) 719.4 Kph (447mph) at sea level and 793.4 kph (493mph) at 23,000 ft
• Range: 985 to 1325 miles or 1585.2 km's to 2132.4 km's depending on load
• Service ceiling: ?
• Rate of climb: 10.5 minutes to 19,700 ft and 33 minutes to 32,800

Armament *

• Twin 13mm Mg 131's in the remote controlled tail turret
• 8,800 lb of bombs

* Reference from Warplanes of the third reich by william green, pages provided by TT33a

Edited July 9, 2014 by TG_survivor707

[_NVKKEZ_ 9,959]

This looks like a jet powered He-177  :lol:

[Chippy_ 3,279]

ew

[LB95 6,206]

so we can point and laugh at it

[McDinggle 412]

A jet bomber with fixed landing gear... Oh boy.

[Boceto 3,666]

Best part, it'll be tier V because it's a jet, and it'll never ever meet those tier 3s that are still faster than it...

[NightFalcon 244]

Only the first prototype had fixed landing gear.



"The production version was to have two 13-mm MG131 machine guns in a remote-controlled tail turret, the bomb load of 4000kg (8800lbs) was to be carried. After successful flight test in August 1944, the Ju 287 demonstrated excellent characteristics, and three prototypes were built with more powerful engines, and improved features including pressurized cockpit (for a crew of 3), retractable landing gear and take off assistance rockets" from a book Aircraft of the Luftwaffe, 1935-1945 by Jean-Denis G.G. Lepage











Russians captured later prototipes and further developed them



"The Ju287V1 was destroyed during the occupation phase of the Soviet forces in April 1945. But at Dessau the Soviets continued the construction of the V2 and V3, which were flown in summer 1945. Baade continued the developement of the Ju287 under Soviet leadership. In Dessau the EF131 was designed, which was ready for its first flight in August 1946. But before the first flight was performed, the Soviets transfered all developement and test work to Podberesje in Russia in September 1946. The first flight was performed by the German testpilot Paul Jugle on 23.05.1947 at Stakhanovo airfield in Russia. In June 1948 the Soviets advised the German team to stop further developement of the EF131. A second prototype was already under construction in Russia, but was later scrapped and used for the construction of the EF140."



Edited June 30, 2014 by NightFalcon

[STOP_IT 327]

Pls, give germany this as top tier bomber (russia can have it too)



[spoiler][/spoiler]



[spoiler][/spoiler]



[spoiler][/spoiler]

[Twan 914]

Hidden & Dangerous:  Devil's Bridge



In the very first mission you steal that plane ;)s



Or at least something that looks almost exactly like that, it's been awhile, pretty sure that's it though

Edited June 30, 2014 by Twan

[Caddylack 1,538]

Interesting plane definetly, looking forward to it (as well as cockpit...oh wait).



Don't miss this one here, contains a ton of information about the whole prokect: http://de.scribd.com/doc/4674179/Monogram-Close-Up-01

[SunsetShimmers 7,929]

Maximum speed: 558 km/h; 302 kn (347 mph) at 6,000 m (19,685 ft)



I think this was just the speed of the V-1 prototype; the V-2 was supposed to be capable of 800 kph, and the EF 131 (which was the continuation of Ju 287 development, under Soviet control) managed either 860 or 904 kph.

[Doktor_Junkers 8,441]

Funny how similar the Soviet development is to early cold war aircraft made by the USSR.

[TT33a 5,406]

[TG_survivor707 297]

-Book image-

Cool !

can i have the book's name?

[Boz1995 1,681]

i doubt the V1 will be the one coming to game, it couldn't even carry bombs as it was just a proof of concept and it has a paltry top speed.



i recon the V2 might, but my money is on the V3 as it has flown more than once and has genuine bomb provisions and weapons.

[TT33a 5,406]

Cool ! can i have the book's name?

http://www.amazon.com/Warplanes-Third-Reich-William-Green/dp/0385057822

[HubertRudel 316]

Which version do you think, they' re going to add?

Edited December 21, 2014 by HubertRudel

[AtomicPope 3,953]

Which version do you think, they' re going to add?



I think (I hope, at least) they're going to add the V3(A-0/A-1) because it's actually combat capable.

[HubertRudel 316]

I think (I hope, at least) they're going to add the V3(A-0/A-1) because it's actually combat capable.

The v1 looked so amazing, but it was realy crappy too; (non-retlactable landing gear, NO confirmed armament, derpy bombs hanging from the fuselage, and the speed- O MY GOD.)

The v3 is better in every way. two 13mms, retractable gear, more engines, and it was tested for more time.

[_NVKKEZ_ 9,959]

We should get the V3 but knowing Gaijin...I won't be surprised to see the V1 instead.

[TT33a 5,406]

The v1 looked so amazing....derpy bombs hanging from the fuselage



The V1 never had any bombs...it was just a testbed for the wings

Edited December 22, 2014 by TT33a

[HubertRudel 316]

The V1 never had any bombs...it was just a testbed for the wings

Sorry! I' m new here, and I might not know everything. I didn' t found any confirmed info about the bombs placement. Additionally, the V3 is very often mistaken with the V2. Both pictures and data.

[HardeKoning 1,095]

I find the lack of hype for this aircraft disturbing. I demand a raise of hype.



On topic:

I imagine this aircraft would compete quite well with the B-57 And Canberra. (not the Cannonberra)

Not in top speed, but it does have a better bombload and it has defensive armament.

Assuming we get the V-3, which would seem like the only logical choice to me.

[HubertRudel 316]

I find the lack of hype for this aircraft disturbing. I demand a raise of hype.

On topic:
I imagine this aircraft would compete quite well with the B-57 And Canberra. (not the Cannonberra)
Not in top speed, but it does have a better bombload and it has defensive armament.
Assuming we get the V-3, which would seem like the only logical choice to me.

I've expected much more hype too. Strange... Anyway I also hope for the V3 variant.
