[data sheet]Morane Saulnier(Doflug)D-3801

[DerDeerio 17]

Link to other swiss plane the K+W (EKW) C-3603-1: https://forum.warthunder.com/index.php?/topic/258446-data-sheet-eidgen%C3%B6ssiche-konstruktionswerkst%C3%A4tte-kw-c-3603switzerland/



Model: Morane Saulnier D-3801

Technical Description: cantilevered low-wing, composite construction, metal grid hull braced, light metal and fabric lining, metal wing with Allow-wood, glued

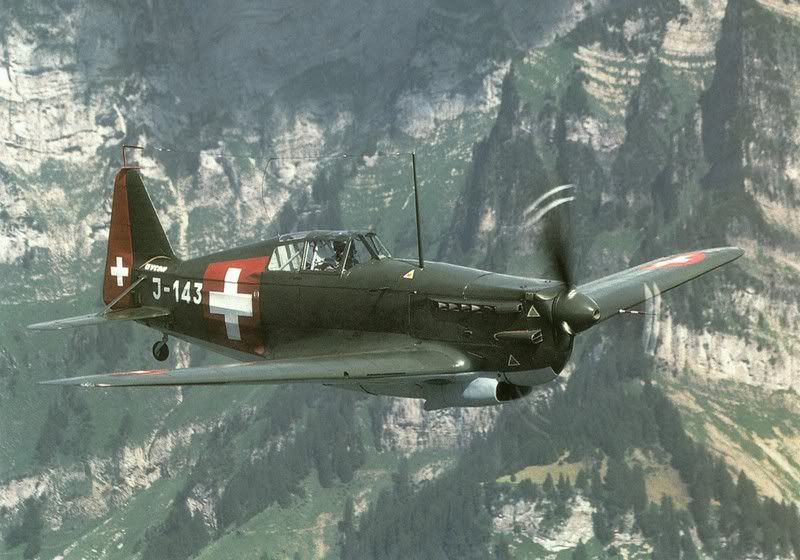

Visual Aspects:

Link to many more important pics: http://old.hermannkeist.ch/bilder-morane-saulnier.html?page=1#category

Short History:

The Swiss continued development of the MS.412 when French involvement stopped following the June 1940 Armistice. The Dornier-Altenrhein factory completed a prototype powered with a licenced-produced HS-51 12Y engine, generating 790.4 kW (1,060 hp) together with the fixed radiator and revised exhausts as tested on the MS.411, in October 1940. The new type retained the armament changes and other improvements introduced on the D.3800.This series was put into production in 1941 as the D-3801 with continued deliveries until 1945 with 207 completed. Another 17 were built from spares between 1947 and 1948. Reliability of the new engine was at first extremely poor, with problems with crankshaft bearings causing several accidents. The engine problems slowed deliveries, with only 16 aircraft produced in 1942 and a single aircraft delivered in 1943. The engine problems were eventually resolved in 1944.^[13] With 790.4 kW (1,060 hp) from theHispano-Suiza 12Y-51, the speed was boosted to 534 km/h (332 mph), roughly equivalent to the D.520 or the Hurricane. Weights were between 2,124–2,725 kg (4,683–6,008 lb). After being retired from operational use as a fighter when the North American P-51 Mustang was acquired in 1948, the type remained in service as a trainer and target tug until 1959.



Configuration: Multirole Fighter



Production Status

First flight: october 1940
Introduction year: 1941

Status: mass production

Number built: 207



Crew Data
Number of crew: 1

Roles of crew: pilot


Engine Data (Piston Aircraft)
Manufacturer: under license, SLM Winterthur and Saurer, Arbon,CH
Name: Hispano-Suiza HS 51 12Y
Number of engines: 1
Number of cylinders: 12
Configuration: 60°-V-shape, 4 stroke-engine
Cooling: liquid-cooled
Supercharger / Turbo: 2 groups of 3 carburator with automatic height correctors
Fuel: 87 octane gasoline
Dry weight: 492
Gear ratio: 0.67:1



Fuel Data
Fuel tanks:-
Fuel consumption: flight duration: 1hr 35min

Power Data
WEP:-
Take Off Power:-
Maximum Power:-
Cruising Power:-

Rated Power: 1000hp at 2500rev/min

Propellor Data
Manufacturer: Escher-Wyss
Type: EW-V6
Number of blades: 3
Blade diameter: 3.10m

Basic Geometric Data
Length: 8.17m
Wing span: 10.62
Wing area: 17.10m²
Height: 3.40m
Flap area:-
Elevator area:-
Rudder area:-
Aileron area:-

Weight Data
Empty weight: 2125kg
Loaded weight: 2725kg

General Performance Data
Maximum speed: 535kp/h

Minimum speed:

Landing speed:
Cruising speed:
Service ceiling: 10800m above sea lvl. M.
Range: 600km



Rate of Climb
max climb performance: 16.2m/s

Armament

1xaircraft engine cannon 20mm FMK-38 of 90 shot, in propeller installed

2xwing MG-29 7.5mm, 480 rounds each

6xmissiles 8cm Oerlikon, only from 1944 built

2xbombs of 50kg each, only from 1944 built

flares

Ammunition:-

Notes-
