Pvkv III tank destroyer

[Tasty95215 2,099]

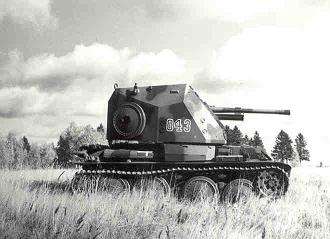

The Pvkv III was an experimental Swedish tank destroyer, converted and tested in the early 50's as a way to extend the life of the Strv m/41. It used a 57mm anti-tank gun in a new, larger turret. Pvkv stands for "Pansarvärnskanonvagn", which is Swedish for tank destroyer.



Compared to the similar Pvkv IV "Värjan", this one has:

• (+) More crew members
• (+) Much faster turret traverse
• (+) Much better reload rate
• (+) More hull armor
• (-) Worse turret armor
• (-) Worse mobility
• (-) Much larger profile
• (-) No coaxial machine gun



Design:

A Strv m/41 was used as the base of the new tank destroyer, with the S/II model being used over the S/I due to the former's better armor. The chassis was unchanged, but the turret was replaced with a much larger, blockier turret.



A Strv m/41-S/II light tank



The gun used was the Pvkan m/43 towed anti-tank gun.





It could use the following shells:

• Sgr m/43 HE
  • 2.82 kg
  • 500g TNT
  • 600 m/s
• Slpgr m/43 APHEBC-T
  • 2.51 kg
  • 60 g TNT
  • 850 m/s
  • Has 88 mm penetration from Gaijin's calculator
• Slpprj m/43 AP-T
  • 2.7 kg
  • 830 m/s
  • Has 102 mm penetration from Gaijin's calculator
• Slpprj m/49 APDS-T
  • 37 mm core
  • 1.0 kg
  • 1200 m/s
  • Penetration: 140 mm at 90° and 500 meters. Source (note that these are from experimental trials)
    Spoiler





 57mm Shells:

Spoiler

Photos:

Slpgr m/43 APHEBC-T: https://digitaltmuseum.se/011024371389/57-mm-patron-m-1943

Slpprj m/43 AP-T: https://digitaltmuseum.se/011024371386/57-mm-patron-m-1943

Slpprj m/49 APDS-T: https://digitaltmuseum.se/011024429264/57-mm-patron-m-1943





The Pvkv III was tested around the same time as the similar Pvkv IV "Värjan", which had the same 57mm gun. While the Pvkv III managed to achieve a much better reload rate (12-14 rounds per minute) due to its larger, 3-man turret compared to the Pvkv IV, in the end the Pvkv III also was not accepted into service. The sole prototype likely ended up getting scrapped.



From left to right, the Pvkv IV Varjun, the Pvkv III, the Pvkv II



Specifications:

• Length: 4540 mm (including gun: 6000 mm)
• Width: 2140 mm
• Height: 2710 mm
• Weight: 12 tons
• Crew: 5 - Commander, loader, Gunner, Machine gunner, Driver
• Top speed: 43 km/h (reverse: - 5.3 km/h)
• Engine: Scania-Vabis L 603/3 (Gasoline 165 hp at 2320 rpm)
• Power to weight ratio: 13,7 hp/t
• Gradient: 45°
• Side slope: 34°
• Trench: 2.1 meters
• Ground clearance: 400 mm
• Track width: 293 mm
• Ground contact length: 2680 mm
• Ground pressure: ? kg/cm²
• Turning radius: 5.6 m
• Vertical step: 0.8 m
• Fording: 0.9 m



Armament:

• 1 x 57 mm Pvkan m/43
• 1 x 8 mm Ksp m/39 (hull machine gun)
• Gun elevation/depression: +15.5°/-12°
• Turret traverse range: 360°
• Traverse Speed: 9 degrees/second
• Ammo count:
  • 33 rounds of 57 mm
  • 1000 rounds of 8 mm
• Rate of fire: 12-14 rounds per minute (4.3-5 second reload)

Armor:

• Turret
  • Front: 15 mm
  • Side: 10 mm
  • Rear: 10 mm
  • Floor: 6 mm
• Hull:
  • Front: 50 mm
  • Side: 13-15 mm
  • Rear: 13-15 mm
  • Roof: 8-13 mm
  • Floor: 15 mm



Sources:

• https://digitaltmuseum.se/owners/S-AM
• https://sv.wikipedia.org/wiki/Stridsvagn_m/41
• https://web.archive.org/web/20150924104445/http://www.sphf.se/Axvall/41.htm
• http://tanks.mod16.org/pdf/datasheets/Stridsvagn m41.pdf
• http://tanks.mod16.org/pdf/Amregister, 1960.pdf
• https://zhuanlan.zhihu.com/p/24762267
• https://forum.warthunder.com/index.php?/topic/417466-standalone-swedish-ground-forces-tree/



Edited April 13, 2020 by Tasty95215

[ItssLuBu 1,803]

Approved and open for discussion.

[Wolf_89 2,525]

Yes pls :)

[ramy353 71]

Hell ya this plus PVKV 4 would be amazing addition to the tech tree, I am still wondering why these didn't make it in, I am guessing because it would take to much work model the gun physics as they would be the only two tanks using the 57mm gun

[Tasty95215 2,099]

Sorry, but I messed up the information on the Slpgr m/43 APHE. It actually has 60 grams of explosives, not 6 grams. Also, since it's an APHE-BC shell, not APCBC, it doesn't get the extra penetration bonus from Gaijin's pen calculator. As such, the penetration (according to the calculator) is 88mm, not 111mm. However, the other rounds should be correct.



[Milocat 4,857]

I like this tank destroyer too!  +1.

[eleks12 1,079]

+1

[Stridswombat 1,089]

On 07/04/2020 at 10:35, Tasty95215 said:

Sorry, but I messed up the information on the Slpgr m/43 APHE. It actually has 60 grams of explosives, not 6 grams. Also, since it's an APHE-BC shell, not APCBC, it doesn't get the extra penetration bonus from Gaijin's pen calculator. As such, the penetration (according to the calculator) is 88mm, not 111mm. However, the other rounds should be correct.

Honestly APBC should get the bonus if Gaijin was in any way consistent. Also you may want to consider remaking the poll. This does affect the BR of the vehicle. Most people seem to have voted 3.3, higher than the PZ 3 which has similar gun performance, much better armour and better mobility.

[Tasty95215 2,099]

14 hours ago, Stridswombat said:

Honestly APBC should get the bonus if Gaijin was in any way consistent. Also you may want to consider remaking the poll. This does affect the BR of the vehicle. Most people seem to have voted 3.3, higher than the PZ 3 which has similar gun performance, much better armour and better mobility.



Yeah, that's fair. I'll reset the polls, and do the same for the Pvkv IV Varjan poll.



Also, as a note to everyone voting - just because the Pvkv III could use APDS, doesn't necessarily mean it will, so you don't have to base the BR vote on that.

[CokeSpray 7,274]

Suggestion passed to the developers for consideration.

[leroyonly 4,311]

As the Pvkv III has been implemented with update 2.17 Danger Zone,



Moved to Implemented Suggestions.
