Hello everyone! Today I'm suggesting a Chinese wheeled ATGM carrier:



Historical background



Spoiler

The WZ550 AT (also known as AFT-9 HJ-9) is a Chinese ATGM carrier based on a shortened WZ-551 chassis.



In the 1980s Norinco designed the WZ551 6x6 APC based on the chasis of the Tiema XC2200 truck (itself based on the Mercedes-Benz 2060 chassis). While the vehicle was adopted by the PLA as the Type 90, its performance was deemed unsatisfactory and work began on an improved variant. This was first revealed to the public in 1986 as the Type 92 and entered service in 1995. Meanwhile, work was underway on a 4x4 variant, which was to be designated as WZ550. This variant entered service as a police and anti-tank vehicle.



An initial prototype for an anti-tank WZ550 was designated as WZ91 and used HJ-8 ATGMs. Ultimately, a production version was approved using the newer HJ-9 ATGMs. This anti-tank variant of the WZ550 entered service in the 90s and was first revealed to the public in 1999. The WZ550 remains in service with the PLA along with other variants of the Type 92.



Technical specifications:



The WZ550 weighs 13.750 Kg. It’s powered by a 320 HP Deutz BF8L413FC V-8 turbo-diesel; it features 4x4 drive with a top speed of 95 Km/h on road. The engine is located behind the driver, with the exhaust on the left side of the hull. The hull protects against small arms and artillery splinters; an NBC protection system is also featured. The two windshields can be covered by an armored shutter, leaving forward vision to several fixed periscopes and one rotating. A crew of three is carried (driver, commander, and gunner). Unlike other variants of the Type 92, the WZ550 is not amphibious.



The turret features four HJ-9 missiles, with another eight stored in the hull. Its vertical guidance range is of -10º/+10º and its horizontal range of 200º to each side. The turret retracts into the hull when in travelling mode. The guidance system features day sights, thermal sights, TV goniometers and a laser transmitter. The thermal sight operates in the 8 to 12 μm band and has a detection range of 4 Km. Additionally, two banks of four 75 mm smoke grenade launchers are carried.



Weight	13.750 Kg
Length	6.05 m
Width	2.44 m
Height	1.98 m
Crew count	3 (driver, commander, gunner)
Missile (count)	HJ-9 (12)
Engine power	320 hp
Maximum road speed	95 km/h
Range	~800 km
Gradient	60º
Side slope	30º
Vertical step	0.5 m
Trench	0.6 m
Fording	~1 m

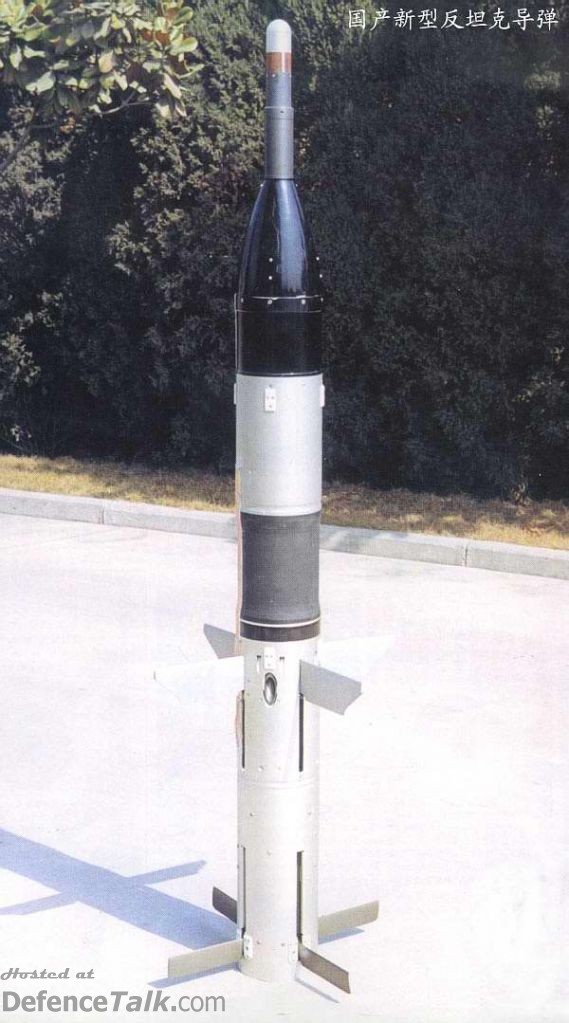

The HJ-9 (Hong Jiang-9, Red Arrow-9) is a Chinese laser-guided SACLOS ATGM. The missile has a length of 1.2 m, a diameter of 152 mm and a weight of 37 Kg. Two sets of four fins fold out after launch. It’s powered by two rocket motors (a booster and a sustainer) for a maximum effective range of 5000 m and a minimum of 100 m. The missile uses SACLOS laser guidance with a wavelength of .9 μm; this ensures resistance against common jamming techniques, including smoke and soft-kill APS. Only one missile can be controlled simultaneously.



The missile is armed with a tandem HEAT warhead with a penetration under ERA of 1,200 mm RHA at 0º or of 320 mm at 68º.



Gallery



Spoiler









(Sensor array)



(Driving position)



(Gunner's seat)



(HJ-9 outside its tube)



Finally, why should it be added? Very simple, because the Chinese can allways do with more vehicles, especially domestic ones. For this one I recommend a BR of arround 9.0.



Sources



• https://tanks-encyclopedia.com/modern/China/WZ551-Type92_APC.php (history)

• http://www.360doc.com/content/19/0118/11/8250148_809642631.shtml (missile)

• http://mil.news.sina.com.cn/2003-07-31/140900.html (missile)

• https://bbs.tiexue.net/post2_12801058_1.html (vehicle)

• http://www.military-today.com/missiles/aft_9.htm (vehicle)

• http://www.army-guide.com/eng/product4627.html (vehicle)

• https://www.armyrecognition.com/chinese_china_army_wheeled_armoured_vehicle_uk/aft-9_hj-9_wz550_anti-tank_missile_launcher_wheeled_armoured_data_sheet_specifications_information_u.html#identification (vehicle)

• https://www.construction-engine.com/bf8l413fc289319hp.html (engine)
