KMW & Nexter EMBT (2022) - To Go Even Further Beyond

[totolescargo 598]

3 hours ago, CaID said:

i made a analisys to estimate the dimention of the new 120mm Shard based on the picture





so the Shard shall have a dimension around those

Diameter = 24mm
length = 796mm
Frustum = 68 mm
velocity = 1720 m/sec
penetrator = Tungsten





with the help of @Laurelix we could estimate the penetration of the Shard as fallow



Penetration statistics
Ammunition	Type of warhead	Penetration @ 0° Angle of Attack (mm)
		10 m	100 m	500 m	1,000 m	1,500 m	2,000 m
OCC 120 G1	HEATFS	480	480	480	480	480	480
OFL 120 G1	APFSDS	425	423	417	410	404	396
OFL 120 F1	APFSDS	575	573	565	557	547	537
120 Shard	APFSDS	675	673	665	657	647	637

Shell details
Ammunition	Type of warhead	Velocity (m/s)	Projectile Mass (kg)	Fuse delay (m)	Fuse sensitivity (mm)	Explosive Mass (TNT equivalent) (g)	Ricochet
							0%	50%	100%
OCC 120 G1	HEATFS	1,100	14.4	0.05	0.1	2,150	65°	72°	77°
OFL 120 G1	APFSDS	1,780	3.8	N/A	N/A	N/A	78°	80°	81°
OFL 120 F1	APFSDS	1,790	3.8	N/A	N/A	N/A	78°	80°	81°
120 Shard	APFSDS	1.720	est. 5.7	N/A	N/A	N/A	78°	80°	81°



i leave the original rounds in-game for the 120mm so we have a point of comparison. we know that Gaijin Nerf a bit the APFSDS for balance purpose so it may have a penetration reduced of about 30mm in all distance but it would remain a pretty good rounds regardless.



at the same time, the French gun also have the OFL 120 F2 who is made of DU. it shall give a penetration of around 600mm at short distance. but it was withdraw from services in the 2000s because of the policy on the matter of Depleted Uranium use. so the EMBT wouldn't get it (only the Leclerc S2 and XXI could get it)











1 hour ago, CaID said:

additionally the 30mm also have decent performence. the information about the rounds is hard to find as the gun is pretty recent, but it appear to be using the same rounds as the Tigre HAD

but i could understand there is at least 3 combat rounds
a APHE also called SAP
a API
a HEI

the SAP source is less reliable, but could be found around the net. but the other are reliable and based on this Website
https://cbcdefense.com/products/caliber/30x113mm/


i suggest to give it a generic belt of API/HEI/SAP/HEI
this belt would be much more effective against aircraft than ground target. but could still be dangerous for the light vehicles.

It should give a penetration around this



Penetration statistics
Ammunition	Type of warhead	Penetration @ 0° Angle of Attack (mm)
		10 m	100 m	500 m	1,000 m	1,500 m	2,000 m
API	API	36	34	26	21	17	14
SAP	APHE	26	25	16	10	7	4
HEI	HE	4	4	4	4	4	4

Shell details
Ammunition	Type of warhead	Velocity (m/s)	Projectile Mass (kg)	Fuse delay (m)	Fuse sensitivity (mm)	Explosive Mass (TNT equivalent) (g)	Ricochet
							0%	50%	100%
API	API	780	0.275	0.05	0.1	Unknown	65°	72°	77°
SAP	APHE	810	0.270	0.05	0.1	unknown	78°	80°	81°
HEI	HE	810	0.242	0.05	0.1	unknown	78°	80°	81°

Outstanding work !



Wasn't the 30mm also advertised with proximity rounds to defeat drones and other air targets such as helicopters & jets ?

I wonder how Gaijin would implement proximity 30mm rounds shot at a 750 RPM ...

[CaID 8,996]

5 minutes ago, totolescargo said:



wasn't the 30mm also advertised with proximity rounds to defeat drones and other air targets such as helicopters & jets ?

I wonder how Gaijin would implement proximity 30mm rounds shot at a 750 RPM ...

very likely, however, Gaijin seldom add researchable belt for the auxiliary armament. i would just love to have a full APDS belt for the 20mm of the AMX 30.

[Kingtiez@live 606]

[Yontzee 1,676]

+1

[MaggyYolokrau1 135]

Quick question is the turret even manned?

since it has two driver ports and the turret is incredibly flat could it be that they just did the same thing as the T-14?



Edited July 8, 2022 by MaggyYolokrau1

[MaggyYolokrau1 135]

8 minutes ago, MaggyYolokrau1 said:

Quick question is the turret even manned?

since it has two driver ports and the turret is incredibly flat could it be that they just did the same thing as the T-14?

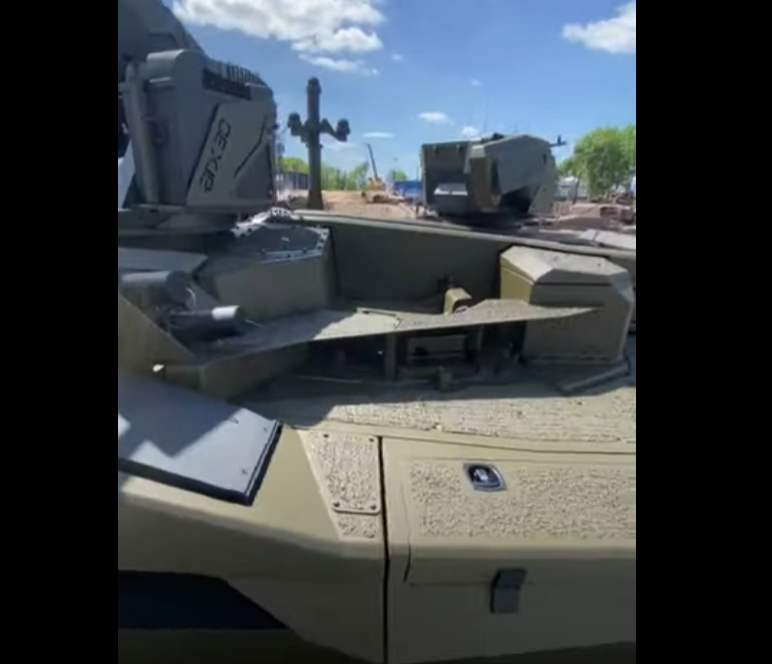

nvm it has a hatch on top of it





[Dontkev@psn 1,300]

On 14/06/2022 at 07:49, Godvana said:

Found this on Reddit

France can have the EMBT and on the other hand i select for germany the Leopard 2(A7?) in the backround

Edited July 8, 2022 by Dontkev@psn

[TERVEPIG3 23]

On 08/07/2022 at 16:52, Dontkev@psn said:

France can have the EMBT and on the other hand i select for germany the Leopard 2(A7?) in the backround

Both or nobody - its not a France Tank because it is European(Germany/France)

[reinforcer9@psn 16]

i think this version is way too young to implement, but the older version of the embt is perfect, literally just a upgraded leo217 hull, with a leclerc turret with more modern systems, would be perfect for both germany and france. for germany, right under the kpz, for france? right under the amx 40

Edited July 25, 2022 by reinforcer9@psn

[Yontzee 1,676]

https://gagadget.com/en/weapons/163597-new-european-tank-by-nexter-and-kmw-will-get-leopard-2a7-chassis-and-leclerc-firepower-amp/

[Woolfi23456789@psn 28]

It also has LWR on the hull. +1

If they really want to give it to only one nation it should be Germany because they have the oversight over the project, but both nations should get it.

Edited September 8, 2022 by Woolfi23456789@psn

[CHEBERZLOY 3]

Rather for France than Germany, Germany have more than enough tanks for 7-8th Ranks.



EMBT Early at 11.0 and this one at 11.0 or even 11.3-7 maybe even as new 8th rank.

[Lord_Prism 1,827]

3 hours ago, CHEBERZLOY said:

Rather for France than Germany, Germany have more than enough tanks for 7-8th Ranks.



EMBT Early at 11.0 and this one at 11.0 or even 11.3-7 maybe even as new 8th rank.

Its a Franco/German project, so its going to go to both like the MBT-70 going to both the US and Germany

[MasterOfUltramar 1,711]

I really dont understand the people who keep saying this should be France or Germany only. Its like giving Panavia Tornado to only Italy or Britain, etc.

[Raiden_Black 1,875]

Currently, the EMBT is equipped with the 120mm L52


BUT ALSO ...
The EMBT is also capable of mounting the French 140mm ASCALON (Autoloaded and SCALable Outperforming guN) in future.
ASCALON 140 mm CT gun has a Muzzle Energy of 20 MJ. NLOS round expected to have a range of 8km to 15 km.





EMBT with 140mm ASCALAN mounted :
