Aircraft/Loadouts La 200 Suggestion

[Vlad_theImpala 388]

Here is a new plane i found for the russians it can complete the Lavochkin line , can u tell me if it is viable for this game.

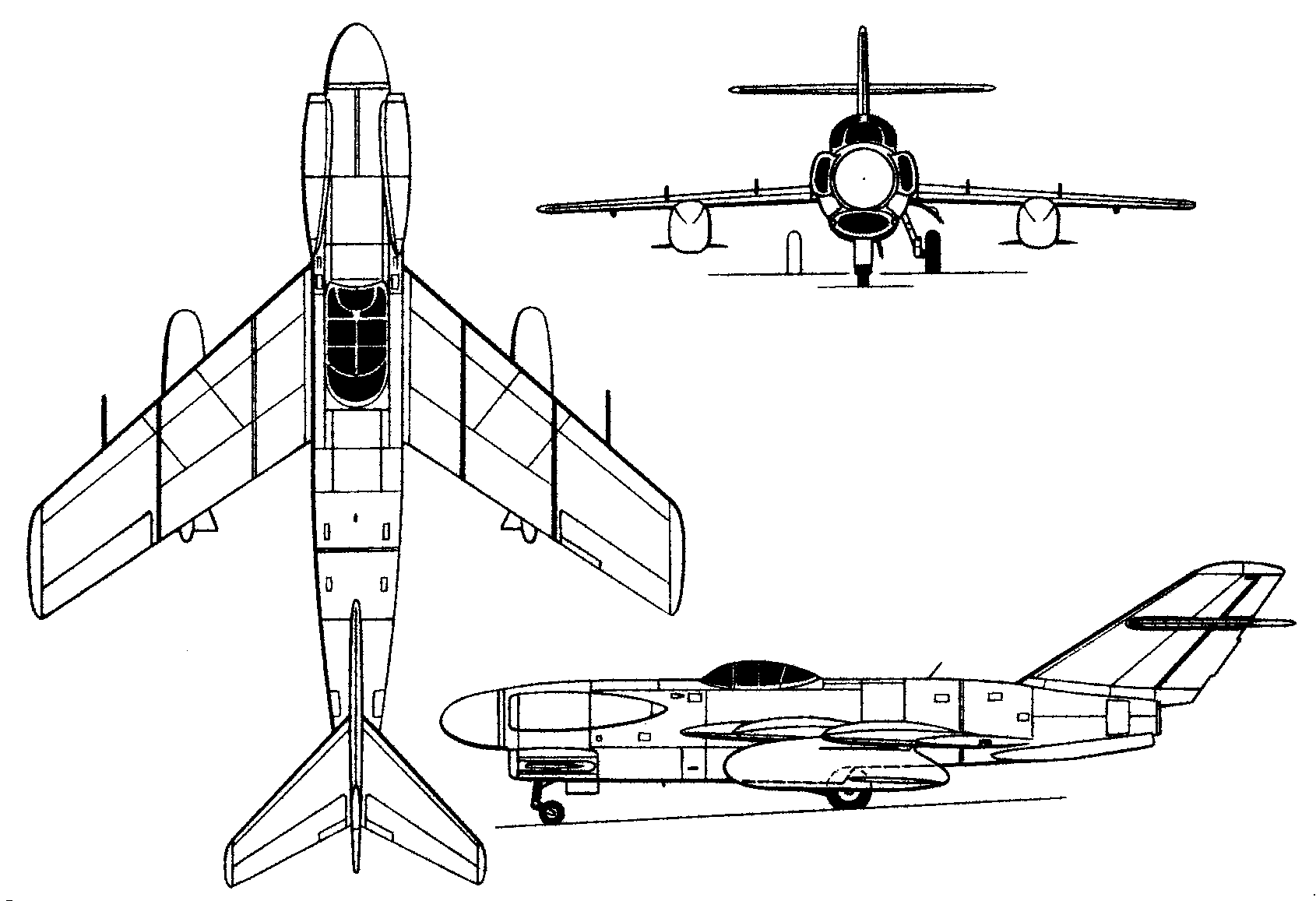

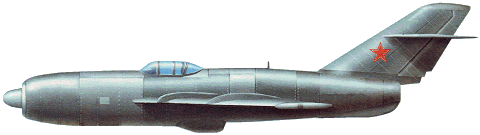

The Lavochkin La-200 (a.k.a. Aircraft 200) was a two-seater, swept winged, Night and Bad Weather Jet Interceptor Fighter designed and manufactured by the Lavochkin Design Bureau from 1948.

Designed to meet a requirement formulated in 1948 for a two-seat twin-engined all-weather interceptor, the La-200 was flown for the first time on 9 September 1949. Two prototypes were built, each powered by two 2700kg Klimov VK-1 turbojets mounted in tandem with the exhaust of the foremost engine ducted beneath the fuselage. The prototypes differed one from the other primarily in the location of the Torii (Thorium) AI radar, the first prototype having a conical intake centrebody and the second prototype having a radome underslung on the upper intake lip. Armament consisted of three 37mm N-37 cannon, one to port and two to starboard. The wing, sweptback 40° at the leading edge, was largely occupied by integral tankage and two large underwing slipper-type auxiliary tanks could boost maximum range from 1165 to 2000km.



The first prototype was flown on 9 September 1949, and the first and second flight test phases were completed by February and October 1950 respectively, Mach=0.946 being attained in level flight and Mach=1.01 in a dive. The second prototype joined the flight programme early 1951, the repositioned radar being of the improved Torii-A type, ammunition capacity being increased, a ventral keel being introduced and normal loaded weight rising to 10580kg. With the final NII VVS test phase completed in April 1951, a recommendation was made that series production of the La-200 should be initiated. This was thwarted, however, by the issue of a replacement specification in November 1951 calling for a substantial increase in range to permit all-weather standing patrols, and for the provision of heavier, longer-ranging radar. Further work on the La-200 was therefore discontinued in favour of the revised La-200B.

Data from Gordon,Yefim. Lavochkin's Last Jets. Midland Publishing. Hinkley. 2007. ISBN(10) 1 85780 253 5

Specifications (La-200B)

General characteristics

• Crew: Two
• Length: 16.351 m (53 ft 7-3/4 in)
• Wingspan: 12.96 m (42 ft 6-15/64 in)
• Wing area: 40.02 m² (430.32 ft²)
• Empty weight: 8,810 kg (19,420 lb)
• Gross weight: 12,630 kg (27,840 lb)
• Powerplant: 2 × Klimov VK-1, 26.487 kN (5,950 lbf) thrust each

Performance

• Maximum speed: 1,070 km/h (664 mph)
• Maximum speed: Mach 0.95
• Range: 1,170 internal, 2,170 drop tanks km (726 Internal, 1,347 Drop Tanks miles)
• Service ceiling: 15,550 m (51,017 ft)
• Rate of climb: 27.78 m/s (5,470 ft/min)

Armament

• 3 x 37mm Nudelman-Suranov NS-37 cannon
• Lavochkin La-200 B and the Lavochkin La-200 "Torii radar"
•

[BeyondTS 3,605]

Looks good, moved to further discussion.

[Guest]

would round out the russian jets alongside the la-15 and the 2 mig-15s. so...... yes please.

[Vlad_theImpala 388]

as u can see there are two versions of the la 200 u can put them in the tech tree like u did the f9f panthers, they are almost the same, and tnx for considering it.

[ChrisXD62365 520]

looks like a goblin shark,+1

[TheTerminatorHUN 95]

Why not.. +1, but add Horten 229 too!

[Kiccsavo 159]

The second one with the 3 air intake looks very cool!  :good:
+1

[SteeeveMaddennn 1,656]

Interesting design, so it has one engine in the front and one in the back? Would like having this, at least some day, +1!

[TheTerminatorHUN 95]

Silviu, by the way, make a poll to this topic so we can vote for it!

[Vlad_theImpala 388]

poll added.

[Guest]

bumpity bump

[Nudelblitz 22,006]

Looks awesome!

[AbfangJager 8,028]

Looks good, moved to further discussion.



But this is prototype ?

[Vlad_theImpala 388]

so is the i 185 and we have in the game.

[AbfangJager 8,028]

İ185 broke the game.

[Vlad_theImpala 388]

cuz they put the wrong engine in it, it will get nerfed next patch.

[WeeWooMcGoo 332]

OH hell yeah, look at that beast! After the war a lot of aircraft just started getting bigger. The jet age brought in some beefier heavier aircraft that were feasible with the new jet power. This is one of the quirky russian designs and im loving the specs as well as the looks of it. Lets see it in the game now! +1

[Smin1080p_WT 60,444]

Nicely done, Locked and Documented  :salute:

[Rautaa 5,801]

Suggestion passed to developers   :salute:
