Type 95 Heavy Tank

[OFW_Schroedinger 804]

I informed myself about Japanese Heavy Tanks for a while and thought the Type 95 Heavy Tank would be a nice premium Tier I tank.

My sources are:

https://ikazuchisen.wordpress.com/type-95-heavy-tank-and-early-prototypes/

http://en.m.wiki.sxisa.org/wiki/Type_95_Heavy_Tank

http://www.tanks-encyclopedia.com/ww2/japan/ww2_IJN_Tanks.php

http://www.moddb.com/members/tankated/images/type-95-heavy-tank

http://combat1.sakura.ne.jp/95SHIK-H.htm (thx to  Leutnant_Erica, who send me this source)

http://www3.plala.or.jp/takihome/fqa.htm

http://ww2data.blogspot.de/2015/06/imperial-japanese-army-ammunition-7cm.html (ammuntion variants with the caliber 70mm, the last one was used for the Type 94 Tank gun which was used for the Type 95 Hevy tank)

http://research.omicsgroup.org/index.php/Type_95_Heavy_Tank

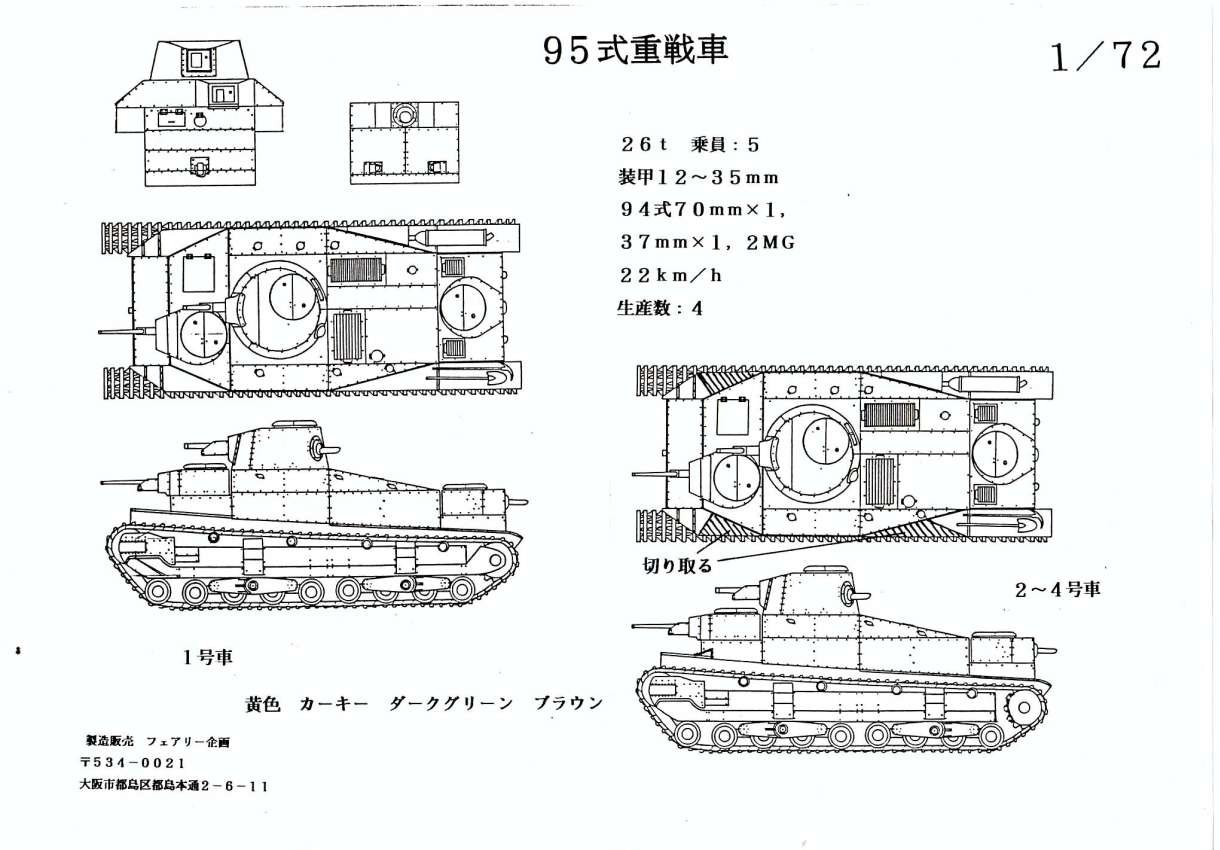

Technical data:

Weight: 26 t
Length: 6.47 m (21.25 ft.)
Width: 2.69 m (8.8 ft.)
Height: 2.89 m (9.5 ft.)
Crew: 5
Armor: 12-30mm
Main armament: 1x 70mm tank gun
Secondary armament: 1x 37mm tank gun, 2x 6.5mm MG
Engine: Aircraft Type 6 cyl liquid cooled
290hp
Suspension: Leaf-Spring
Operational range: 110 km
Speed: 22 km/h (13.7 mph)

I am quite not sure if this HEAT-Shell was supposed to be used by the Type 94 Tank gun, but the caliber would fit



(the following text and pictures are "copy and paste" from the Page:http://ww2data.blogspot.de/2015_06_01_archive.html)

Type 95 7cm (70mm) Armor Piercing Projectile


Weight of complete round: 5.04kg
Weight of projectile (Fuzed): 4.45kg
Weight of filling: 0.17kg
Filling: Preformed paper-wrapped filling - Forward portion, "OSHIYAKU" (Picric Acid 90%, Paraffin 10%) - After portion, TNT
Diameter at bourrelet: 70mm
Length of propellant case: 101mm
Length of assembled round: 307mm
Diameter of base of case: 81mm
Width of rotating band: 10mm

Fuzing: Type 95 small A.P. base fuze

Propellant: 5mm square grain - 120g

Used in: Type 94 Tank gun



Edited February 1, 2017 by OFW_Schroedinger

[blakeob 8,086]

Open for discussion.

[Yikus_Maximus 963]

I support this, but Type 95 would suit regular tech tree much better. Maybe as a starter tank of heavy tanks line.

[OFW_Schroedinger 804]

4 hours ago, Leutnant_Erica said:

I support this, but Type 95 would suit regular tech tree much better. Maybe as a starter tank of heavy tanks line.

I added the option to vote for it as a part of the regular techtree

Edited January 30, 2017 by OFW_Schroedinger

[Baka_9_Cirno 55]

The photo you have is not type 95, rather the experimental chi-i tank

Here's the type 95 heavy :



[Mai_Waffentrager 9,657]

For someone making a suggestion, the least you could have done was not post a picture of the Experimental I tank.

[OFW_Schroedinger 804]

59 minutes ago, Baka_9_Cirno said:

The photo you have is not type 95, rather the experimental chi-i tank

Here's the type 95 heavy :





Thx for giving me this pictures, i was reading the tons of text and just took a picture i found in one of this posts. i will change the pictures.

57 minutes ago, Mai_Waffentrager said:

For someone making a suggestion, the least you could have done was not post a picture of the Experimental I tank.

Sry that this is my first time, pls dont get mad. As you can see i changed the pictures. And if you want to give me some hints for suggestions write me a privat message

Edited January 30, 2017 by OFW_Schroedinger

[DavidXD 1,355]

Yes !

You've my support !

[OFW_Schroedinger 804]

13 minutes ago, DavidXD said:

Yes !

You've my support !

Thank you m8 ^-^

[Mai_Waffentrager 9,657]

Your first image is of the Type91..

[OFW_Schroedinger 804]

6 hours ago, Mai_Waffentrager said:

Your first image is of the Type91..

then please stop just to say whats wrong and send some correct images, so i can put them into the suggestion

[WiseMinerva 455]

I could totally see this thing going toe-to-toe with the t-35 and the other multi turreted tanks.



You have my support

[OFW_Schroedinger 804]

On 11.2.2017 at 8:16 AM, WiseMinerva said:

I could totally see this thing going toe-to-toe with the t-35 and the other multi turreted tanks.



You have my support

Tank you ^^

[Admiral_Aruon 2,264]

i'm all for it. well documented, pictured and sourced too.



it could only hope it to be researchable but seeing as this fits perfectly alongside the T-35, A1E1, and neubaufahrzeug multi-turreted designs, it's more likely to be a premium.

[Baka_9_Cirno 55]

On 2/17/2017 at 5:12 PM, admiral_aruon said:

i'm all for it. well documented, pictured and sourced too.



it could only hope it to be researchable but seeing as this fits perfectly alongside the T-35, A1E1, and neubaufahrzeug multi-turreted designs, it's more likely to be a premium.

Same, gaijin could probably add the experimental 1 tank, type 91 and type 95 for a tier 1 to early tier 2 line, and below all of them in tier 4 there would be the O-I :3

[Smin1080p_WT 60,444]

Suggestion Passed to the Developers for review
