ground vehicles Sd.Kfz. 10/4 SPAAG with Flak 30

[Alphanoodle 526]

Spoiler

I know this has been suggested before here: https://forum.warthunder.com/index.php?/topic/269731-sdkfz10-flak-spaag/ but the suggestion doesnt specify what version of the Sd.Kfz. 10 it was (either flak 30 or 38) and both images are from the Flak 38 version so i think creating a new suggestion with a poll that actually specifies the Flak 30 version is allowed in this case... i guess ^^  and his suggestion is also not listed in the "list of previously suggested ideas and topics" anyway lets get started!



Forget about the Opel Maultier that i suggested, to "solve" the overkill that the Flak 38 produces at its BR, i found something much more fitting! Meet the Sonderkraftfahrzeug 10/4 mit Flugabwehrkanone 30! A german SPAAG first produced in 1939 to protect Hans and his friends from all those polish and french (and later on even soviet) aircraft. Keep in mind, this thing was NOT equipped with the Flak 38 that we see on most German SPAAGs but the Flak 30 that was in basically all aspects inferior to the 38 and would thus be much more suitable for tier 1!

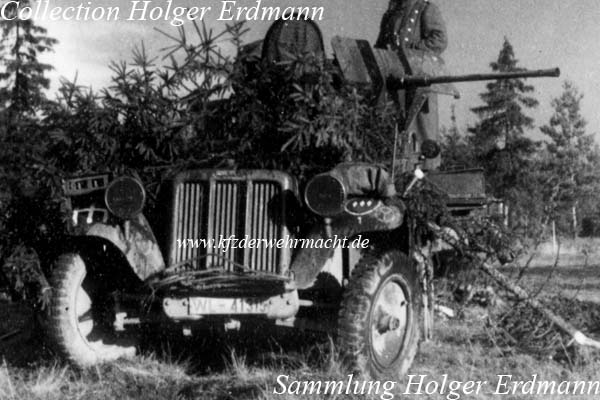

Images: From the shape of the gunshield you can tell if it was eqipped with the Flak 30 or 38

Spoiler



History:

Spoiler

This vehicle was standard Sd.Kfz.10 mounted with special rear superstructure with folding sides to allow full traverse for 20mm Flak 30/38 L/112.5 gun. This vehicle was one of the first air-defence vehicles in use by Germans.

In July of 1939, first 370 Sd.Kfz.10/4 were produced and in 1940, additional 1225 vehicles were produced. From October of 1940 to March of 1942, production continued at the rate of 20 to 25 vehicles a month. In 1941, 20mm Flak 30 gun of Sd.Kfz.10/4 was replaced with newer 20mm Flak 38 gun and the vehicle was redesignated as Sd.Kfz.10/5. Last 962 Sd.Kfz.10/5 were produced from 1943 to November of 1944 by Mechanische Werke in Cottbus.

My History sections suck i know.



Specifications:

Armament:

20mm Flak 30 - 240 round capacity however it usually carried Sd.Ah. 51 - Sonderanhänger - special single-axle trailer with 640 more rounds

Rate of fire: around 280 round per minute cyclic with the standard 20 round magazine (the Flak 38 has 480 RPM in comparison)

360° traverse and -12° to +90° elevation

Ammunition: there's very little data on ammo of the Flak 30 but judging from the muzzle velocity, it most likely uses the same kinds of ammo as the Flak 38. However, since the Flak 30 entered production in 1934 it might not receive the Panzergranate 40 (APCR/HVAP-T) round.

Propulsion:

The vehicle had a weight of around 5.5 tons (12 125,42ibs) and was powered by the Maybach HL42TRKM 6-cylinder engine putting out up to 100 HP. It had a top speed of 65 km/h (40mph) and with almost 20 hp/ton it should be pretty fast overall.

Armour:

It only really had structural steel but the gunshield of the Flak 30 was around 8mm thick - would suffer from hull-break!

It would probably get 3 crew members - 1x driver, 1x commander and 1x gunner

Dimensions:

Lenght: 4.75m

Width: 1.93 - 2.15m

Height: 2.00m



Conclusion: The Flak 38 on the Flakpanzer 1 and so forth is pretty overkill right now. Extremely effective in both shooting down aircraft and in the AT-role, so i want to change that! The Flak 30 might not receive the HVAPT round and due to the much lower RoF it would be much worse in the AA role as well. So what do you think? A vehicle that needs to added in order to finally nerf German low-tier SPAA a bit or do you think the Flak 30 is too weak or something like that? Leave your thoughts down below, vote on the poll and sorry for any minor grammar mistakes, my first language is german :3

Sources:

Spoiler

http://www.kfzderwehrmacht.de/Hauptseite_deutsch/Kraftfahrzeuge/Deutschland/Demag/le__Zgkw__1t/Sd__Kfz__10-4/sd__kfz__10-4.html

http://www.fahrzeuge-der-wehrmacht.de/Artikel/Zgkw_1t.html

http://www.achtungpanzer.com/2cm-flak-30-auf-fahrgestell-zugkraftwagen-1t-sdkfz104.htm

https://www.militaryfactory.com/armor/detail.asp?armor_id=441

https://en.wikipedia.org/wiki/Sd.Kfz._10#Sd.Kfz._10.2F4_and_10.2F5

https://de.wikipedia.org/wiki/2-cm-Flak_30#Munition

https://de.wikipedia.org/wiki/Sd.Kfz._10
