Hello, i'm here to show you my 3d work about the CANT Z 1007 BIS and TER "Alcione"

i have done 3 versions about it.

CANT Z 1007 BIS (monoderiva)

CANT Z 1007 BIS (bideriva)
CANT Z 1007 TER (night bomber)





Here is the 3d views and specs:



CANT Z 1007 BIS (monoderiva) (suggested BR: 3.0)

Real photo

3d Views



CANT Z 1007 BIS (bideriva) (suggested BR: 3.3 )

Real photo

3d Views

Technical Info (both versions):

Material: Wood

First Flight: 6 June 1938 (MM 21221 monoderiva) , July 1938 (MM 22365 bideriva) pilot: Mario Stoppani
In Service:  October 1939 , November 1939

Wing Span: 24,8m

Lenght: 16,15m

Height: 5,65m , 5,22

Wing surface: 75,3sq

Engines: 3x Piaggio P.XI bis RC 40 (1000cv each)

Propellers: 3xPiaggio metal triblade variable pitch

Wep: 3x1100cv

Empty weight : 9396kg

Total load capacity: 4225kg

Total weight: 13621kg

Max speed: 458km/h at 4600m

Min speed: 130km/h

Take off distance: 300m

Landing distance: 440m

Climbing time: 4'18" 2000m

                       9'36" 4000m

                       12'42" 5000m

Service Ceiling: 8400m

Autonomy: at 4500m with 2470kg fuel 900kg of bombs and 830kg military load: 2000km

Crew: 5 (2 pilots, 1 radio operator/side gunner, 1 upper gunner/engeneer, 1 lower gunner, 1 aimer).

Weapons: 1x12,7mm Scotti upper turret I.F. Lanciani Delta 1 300 rounds (360°), 1x12,7mm Scotti lower back 300rounds (45°), 2x7,7mm Breda-SAFAT side guns 500rounds each (90°)

Landing gears: 3, retractable under engines and 1 tail wheel (retractable)



Bomb load configurations:

real in bomb bay(max 1200kg): 20x15kg , 20x20kg , 12x50kg , 12x100kg , 4x160kg+3x50kg , 4x160kg+3x100kg , 2x250kg + 3x50kg , 2x250kg+3x100kg , 2x500kg , 1x800kg+3x50kg , 1x800kg+3x100kg.

real underwing(max 500kg each wing): 3x50kg , 3x100kg , 2x160kg , 2x250kg



ingame configurations (suggestion):

monoderiva version

default: bomb bay 12x50kg, underwings 6x50kg

1st mod: bomb bay 4x160kg+3x50kg , underwings 4x160kg

2nd mod: bomb bay 2x250kg+3x50kg, underwings 4x160kg

3rd mod: bomb bay 2x500kg, underwings 4x250kg



bideriva version

default: bomb bay 12x100kg, underwings 6x100kg

1st mod: bomb bay 4x160kg+3x100kg , underwings 4x160kg

2nd mod: bomb bay 2x250kg+3x100kg, underwings 4x160kg

3rd mod: bomb bay 1x800kg+3x100kg, underwings 4x250kg



CANT Z 1007 TER (night bomber) (suggested BR: 4.0)

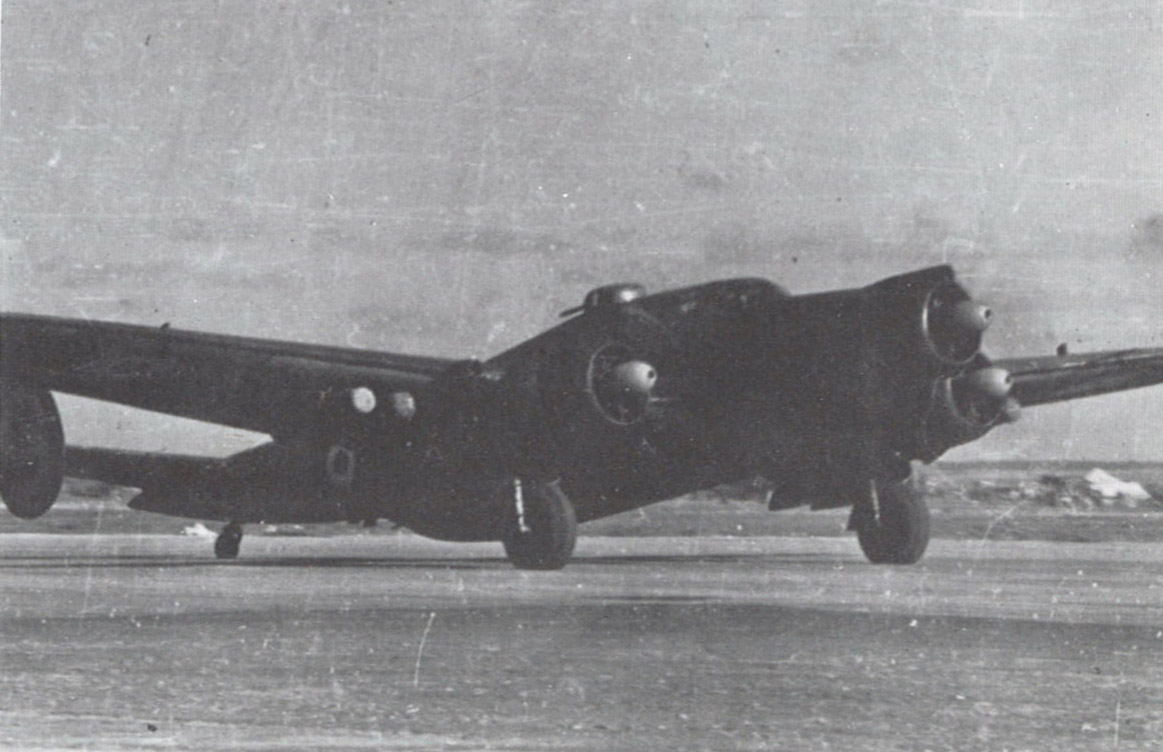

Real Photo

3d Views



Technical Info:

Material: Wood

First Flight: 9 May 1942
In Service:  10 September 1943

Wing Span: 24,8m

Lenght: 16,15m

Height: 5,22m

Wing surface: 75,3sq

Engines: 3x Piaggio P.XIX RC 45 (1175cv each) enlonged mufflers for night bombing

Propellers: 3xPiaggio metal triblade variable pitch

Empty weight : 9447kg

Total load capacity: 4153kg

Total weight: 13600kg

Max speed: 490,5km/h at 6150m

Min speed: 130km/h

Take off distance: 280m

Landing distance: 400m

Climbing time: 1'55" 1000m

                       6'28" 3000m

                       10'44" 5000m

Service Ceiling: 9050m

Autonomy: at 5400m with 2470kg fuel 900kg of bombs and 830kg military load: 2250km

Crew: 5 (2 pilots, 1 radio operator/side gunner, 1 upper gunner/engeneer, 1 lower gunner, 1 aimer).

Weapons: 1x12,7mm Scotti upper turret Breda V type 300 rounds (360°), 1x12,7mm Scotti lower back 300rounds (45°), 2x7,7mm Breda-SAFAT side guns 500rounds each (90°)

Landing gears: 3, retractable under engines and 1 tail wheel (retractable)



Bomb load configurations:

real in bomb bay(max 1200kg): 20x15kg , 20x20kg , 12x50kg , 12x100kg , 4x160kg+3x50kg , 4x160kg+3x100kg , 2x250kg + 3x50kg , 2x250kg+3x100kg , 2x500kg , 1x800kg+3x50kg , 1x800kg+3x100kg.

real underwing(max 500kg each wing): 3x50kg , 3x100kg , 2x160kg , 2x250kg



ingame configurations (suggestion):

default: bomb bay 12x100kg, underwings 6x100kg

1st mod: bomb bay 4x160kg+3x100kg , underwings 4x160kg

2nd mod: bomb bay 2x250kg+3x100kg, underwings 4x250kg

3rd mod: bomb bay 2x500kg, underwings 4x250kg



WIP: http://forum.warthunder.com/index.php?/topic/129474-wip-cant-z-1007-bister/

[_TomokoAnabuki 8,995]

Yes, yes please,

it looks awesome.

[Discorded52 12]

I love it!..... Something new to fail at taking off in xD

[Botan 7,952]

Glorious plane

[Paul_Prospero204 456]

[Jarrow208 446]

I don't even fly Italians and I would fly this. +1

[Comett 4,923]

[Raptor425 1,030]

Huzah! I'm so glad you got this done :D



I hope Gaijin shows some interest.

[Chamo1 6]

I would love to fly these mean machines in game. +1

[uzl2s 145]

YES

[DrNooooo 406]

give plox

[NorthOfSurprise 24]

I followed your progress on the other forum, I'd love to see this in game!

[InnerCircle 1,418]

I fully endorse this!

[Donger_of_Dongs 2,640]

And now we wait for Lassar

[evil_wolf 760]

as a part-time bomber player, i fully want this

[Renamed63172 816]

gaijin already plans a italian tree, without doubt it will be in it

[Italianplayer 1,666]

Yeeeeesssss

gaijin already plans a italian tree, without doubt it will be in it

Now he can start to insert plane and after separate them

[SnakeSh_t 42]

The game would greatly benefit from this!

[EPSNtheGATOR 4,944]

oh my YES!

[Guest]

Gaijin plox add this and hopefully the G.55 and MC-205. Italy needs more love :-[

[Aerobane 4,140]

YUS!

[Guest]

definitely and an Fiat br20 would also be great ;)s.

[YOLOBOI 637]

Incredible, gotta spread 4 moar yus

[Lassar 9,736]

In Italian Tech Tree there is a place for this a/c

[YOLOBOI 637]

In Italian Tech Tree there is a place for this a/c



Does it has exact three variants like he did? also i want to fly his model \o\/o/ ill buy that
